The Aircraft Status window is the only screen in the EFB that is not specifically made for handheld devices. This screen is inherited from the TELS main system but due to wishes from users it is also made available as a part of the EFB. The size of the screen makes this best viewed on a PC or tablet.
Tip: If you see this info on a touchscreen (iPad / iPhone etc) and want to zoom by tapping, then click on the symbol  located top right in this window.

This window shows the status of all aircrafts in the fleet belonging to the TELS licenseholder owning the user license for TELS.

The grid in the screen is highly customizable by the user and all new settings is saved in a cookie on the local device and remembered next time you use the EFB. The following features can be customized:

1. Move a column to a new position by dragging it's header.
2. Change sort order by clicking one or more times in the header so sort ascending or descending. To sort by multiple columns hold down ctrl while clicking on column number two.
3. Change column width by dragging the line between columns in the header.
4. Add or remove columns from the grid by opening the Field Chooser and drag a column header from or to the grid.

	The reset button sets the grid back to its default columns, columnsize and sort order.
	The customize button opens or closes the Field Chooser window that allows you to add or remove columns from the grid.

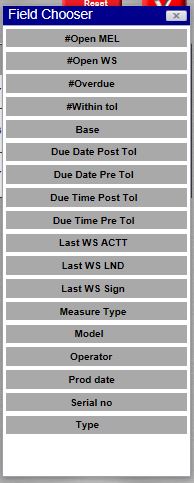

	The Field Chooser window shows all columns not currently in the grid. You can drag a column from the grid to the Field Chooser to remove it from the grid, or drag a field from the Field Chooser to the grid header and place it between two existing column headers to add a column to the grid.
	Use this button to close the AC Status window and return to the EFB Main Menu.

The status grid default view has the following information columns:

To the left of each aircraft registration number is shown a circular symbol stating the current status of the aircraft. The following status symbols are available:

	OPEN WORKSHEET or DUE. Indicates that the Aircraft is inoperational due to: 1. OPEN WORKSHEET: The Aircraft is currently under maintenance 2. DUE: The Aircraft is overdue in aspect of a planned maintenance
	WITHIN TOL. or OPEN MEL-RELEASE. Indicates that the Aircraft is operational, but under restrictions: 1. WITHIN TOL.: The Aircraft is due in aspect of a planned maintenance, but within a tolerance of time. The pilot must refer to the aircraft's DUE TASKS before take-off for more information. 2. OPEN MEL-RELEASE: There exists a technical remark with a MEL-RELEASE signature and a MEL-RELEASE Code that gives permission to operate the aircraft under certain restrictions. The pilot must refer to the aircraft's TECH LOG before take-off for more information.
	OK. Indicates that the Aircraft is operational with no restrictions. The pilot should anyway refer to the aircraft's DUE TASKS before take-off for information about when the next planned maintenance is due.
